ARCFOX koala S 2024
Description
ARCFOX koala S is a new family car choice that combines technology and comfort.

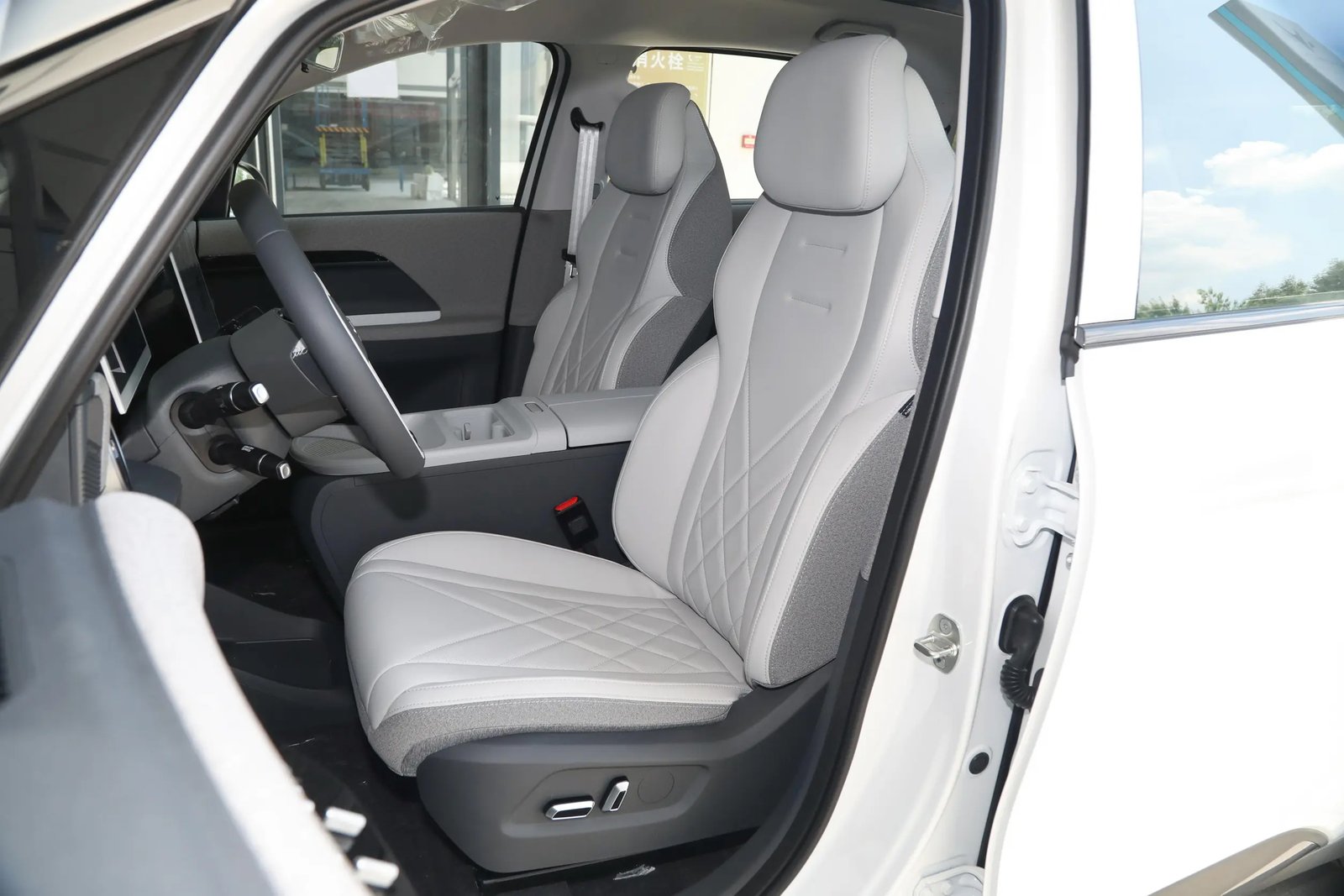

ARCFOX koala Sadopts baby-friendly interior and teether health cabin standards, and the interior materials strictly comply with EU standards for banned substances in toys, covering an area of 11.2m².

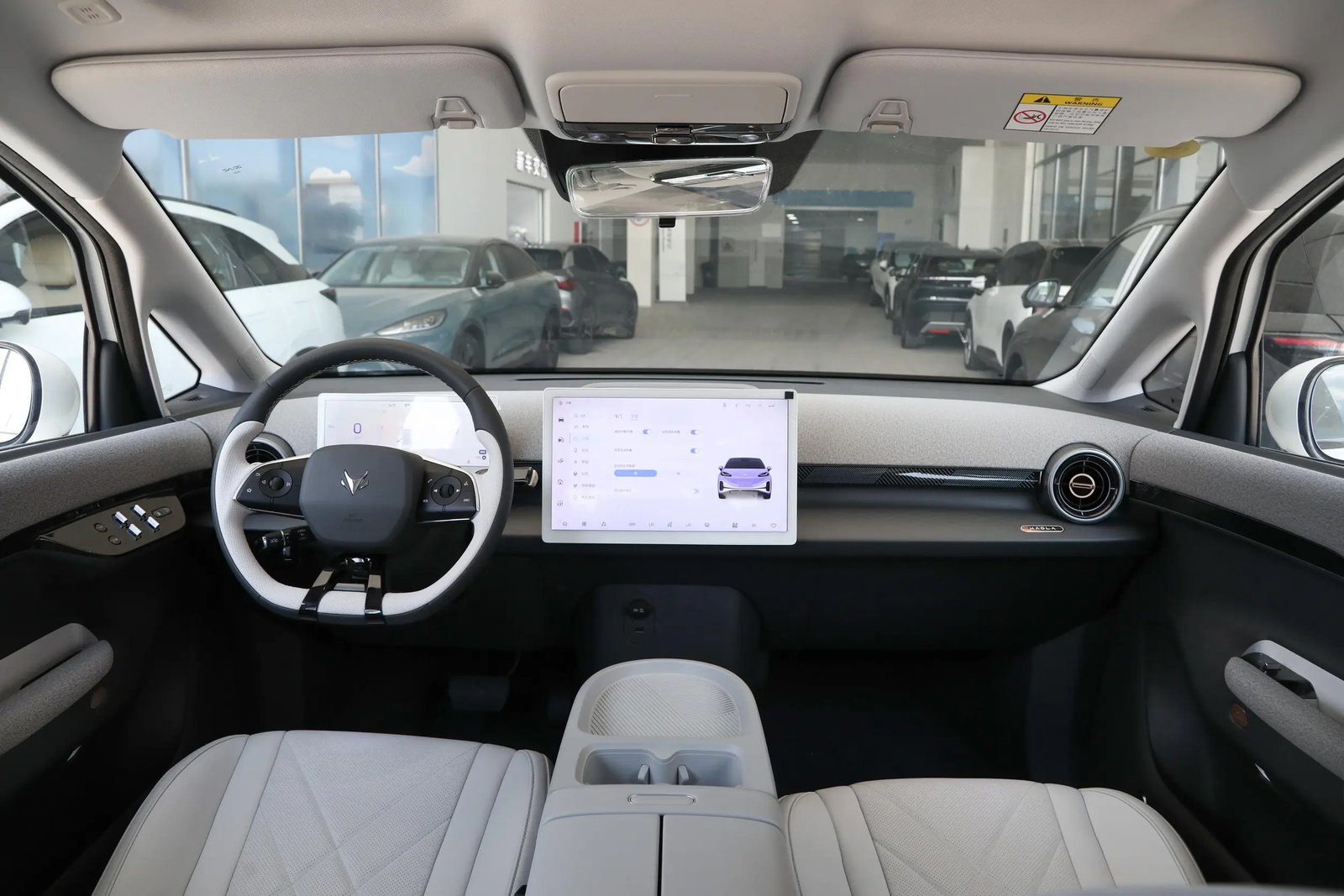

ARCFOX koala S is equipped with a 14.6-inch HD entertainment screen and touch air conditioning panel, and has a built-in Qualcomm Snapdragon 8155 chip to support a variety of intelligent connectivity functions.
ARCFOX koala S is equipped with a lithium iron phosphate battery pack provided by Ningde Times, with a battery capacity of 58.8kWh and a driving range of 500 kilometers under CLTC conditions.
The in-vehicle intelligent system also provides Level 2 autonomous driving assistance functions, including front collision warning, automatic emergency brake assist, lane keeping assist and integrated cruise assist, which enhance the safety and convenience of driving .
ARCFOX koala Sis equipped with a front-facing single motor with a maximum power of 120kW and a peak torque of 240 nm. This dynamic configuration ensures flexible stopping and fast response in urban road conditions .
Parameter configuration
| name | ARCFOX koala S 2024 AIR version | ARCFOX koala S 2024 PRO edition |
| Basic information | ||
| manufacturer | Baic New energy | Baic New energy |
| rank | A compact SUV | A compact SUV |
| Energy type | Pure electric | Pure electric |
| Time to market | 2024.08 | 2024.08 |
| motor | Pure electric 163 HP | Pure electric 163 HP |
| Pure electric range (km) Ministry of Industry and Information Technology | 500 | 500 |
| Electric range (km)CLTC | 500 | 500 |
| Charging time (hours) | Fast charge 0.43 hours Slow charge 10.5 hours |
Fast charge 0.43 hours Slow charge 10.5 hours |
| Fast charge (%) | 30-80. | 30-80. |
| Maximum power (kW) | 120(163Ps) | 120(163Ps) |
| Maximum torque (N·m) | 240 | 240 |
| gearbox | Single-speed transmission for electric vehicles | Single-speed transmission for electric vehicles |
| Length x Width x Height (mm) | 4500x1870x1655 | 4500x1870x1655 |
| Body structure | 5 door 5 seat SUV | 5 door 5 seat SUV |
| Maximum speed (km/h) | 160 | 160 |
| Official 0-50km /h acceleration time (s) | 4.37 | 4.37 |
| Official 100 km Acceleration time (s) | 11 | 11 |
| 100km power consumption (kWh/100km) | 14.7 kWh | 14.7 kWh |
| Power equivalent fuel consumption (L/100km) | 1.66 | 1.66 |
| Vehicle warranty period | Five years or 120,000 kilometers | Five years or 120,000 kilometers |
| body | ||
| Length (mm) | 4500 | 4500 |
| Width (mm) | 1870 | 1870 |
| Height (mm) | 1655 | 1655 |
| Wheelbase (mm) | 2820 | 2820 |
| Front wheel base (mm) | 1597 | 1597 |
| Rear wheel base (mm) | 1600 | 1600 |
| Minimum ground clearance (mm) | 147 | 147 |
| Body structure | SUV | SUV |
| Number of doors (each) | 5 | 5 |
| Door opening mode | Side sliding door | Side sliding door |
| Number of seats (PCS) | 5 | 5 |
| Service weight (kg) | 1800 | 1800 |
| Full load weight (kg) | 2150 | 2150 |
| Luggage compartment Capacity (L) | 410-1360. | 410-1360. |
| Minimum turning radius | - | - |
| motor | ||
| Motor description | Pure electric 163 HP | Pure electric 163 HP |
| Motor type | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW) | 120 | 120 |
| Total motor horsepower (Ps) | 163 | 163 |
| Total motor torque (N·m) | 240 | 240 |
| Maximum power of front motor (kW) | 120 | 120 |
| Maximum torque of front motor (N·m) | 240 | 240 |
| Number of driving motors | Single motor | Single motor |
| Motor layout | preposition | preposition |
| Battery/Charging | ||
| Battery type | Lithium iron phosphate battery | Lithium iron phosphate battery |
| Battery characteristic technology | Aurora battery | Aurora battery |
| Cell brand | Nind era | Nind era |
| Battery pack warranty | Unlimited number of years/mileage of the first owner (liability exemption clause is subject to official) | Unlimited number of years/mileage of the first owner (liability exemption clause is subject to official) |
| Battery capacity (kWh) | 58.8 | 58.8 |
| Battery energy density (Wh/kg) | 144 | 144 |
| Battery charging ratio | - | - |
| Battery charging | Fast charge 0.43 hours Slow charge 10.5 hours |
Fast charge 0.43 hours Slow charge 10.5 hours |
| ● Fast charge interface | ● Fast charge interface | |
| Position of the fast charge interface | Left fuel tank position | Left fuel tank position |
| Position of the slow charge port | Left fuel tank position | Left fuel tank position |
| Battery temperature management system | ● Low temperature heating | ● Low temperature heating |
| ● Liquid cooling | ● Liquid cooling | |
| Single pedal mode | ● Standard Configuration | ● Standard Configuration |
| VTOL mobile power station function | - | ● Standard Configuration |
| VTOL Maximum external discharge power | - | 2.2 kW |
| VTOV Maximum external discharge power | - | 3.3 kW |
| gearbox | ||
| Transmission description | Single-speed transmission for electric vehicles | Single-speed transmission for electric vehicles |
| Shift number | one | one |
| Transmission type | Fixed tooth ratio gearbox | Fixed tooth ratio gearbox |
| Chassis/steering | ||
| Driving mode | front-drive | front-drive |
| Front suspension form | McPherson type independent suspension | McPherson type independent suspension |
| Rear suspension form | Longitudinal torsion beam type non-independent suspension | Longitudinal torsion beam type non-independent suspension |
| Steering type | Electric power assist | Electric power assist |
| Car body structure | self-supporting | self-supporting |
| Wheel/Brake | ||
| Front brake type | Ventilated disk type | Ventilated disk type |
| Rear brake type | Solid disk type | Solid disk type |
| Parking brake type | Electronic parking | Electronic parking |
| Front tire specifications | 215/50 R17 | 215/50 R17 |
| Rear tire specifications | 215/50 R17 | 215/50 R17 |
| Spare gauge | - | - |
| Spare tire placement method | - | - |
| Active safety | ||
| ABS anti-lock | ● Standard Configuration | ● Standard Configuration |
| Braking force distribution (EBD/CBC, etc.) | ● Standard Configuration | ● Standard Configuration |
| Brake assist (EBA/BA, etc.) | - | ● Standard Configuration |
| Traction control (TCS/ASR, etc.) | ● Standard Configuration | ● Standard Configuration |
| Body stability system (ESP/DSC, etc.) | ● Standard Configuration | ● Standard Configuration |
| Active safety early warning system | - | ● Lane departure warning |
| - | ● Front collision warning | |
| Active brake | - | ● Standard Configuration |
| Parallel auxiliary | - | - |
| Lane keeping assist system | - | ● Standard Configuration |
| Keep lane centered | - | ● Standard Configuration |
| Fatigue driving tips | - | - |
| Active DMS fatigue detection | - | - |
| In-car vital signs detection | - | - |
| Road traffic sign recognition | - | ● Standard Configuration |
| Signal light recognition | - | ● Standard Configuration |
| Night vision system | - | - |
| Passive safety | ||
| Front airbag | ● Main driver seat | ● Main driver seat |
| ● Passenger seat | ● Passenger seat | |
| Side airbag | ● Front Row | ● Front Row |
| Side safety air curtain | - | - |
| Front knee air bag | - | - |
| Central airbag | - | - |
| Seat belt is not fastened | ● Standard Configuration | ● Standard Configuration |
| Tire pressure monitoring system | ● Tire pressure display | ● Tire pressure display |
| Child Seat Interface (ISOFIX) | ● Standard Configuration | ● Standard Configuration |
| Passive pedestrian protection | - | - |
| Safety tyre | - | - |
