Haval H9 2024
Description
The Haval H9 is a popular off-road model.
The design of Haval H9 is hard and atmospheric, smooth lines, and has a strong visual impact. The size of the car body is large, giving a sense of stability.

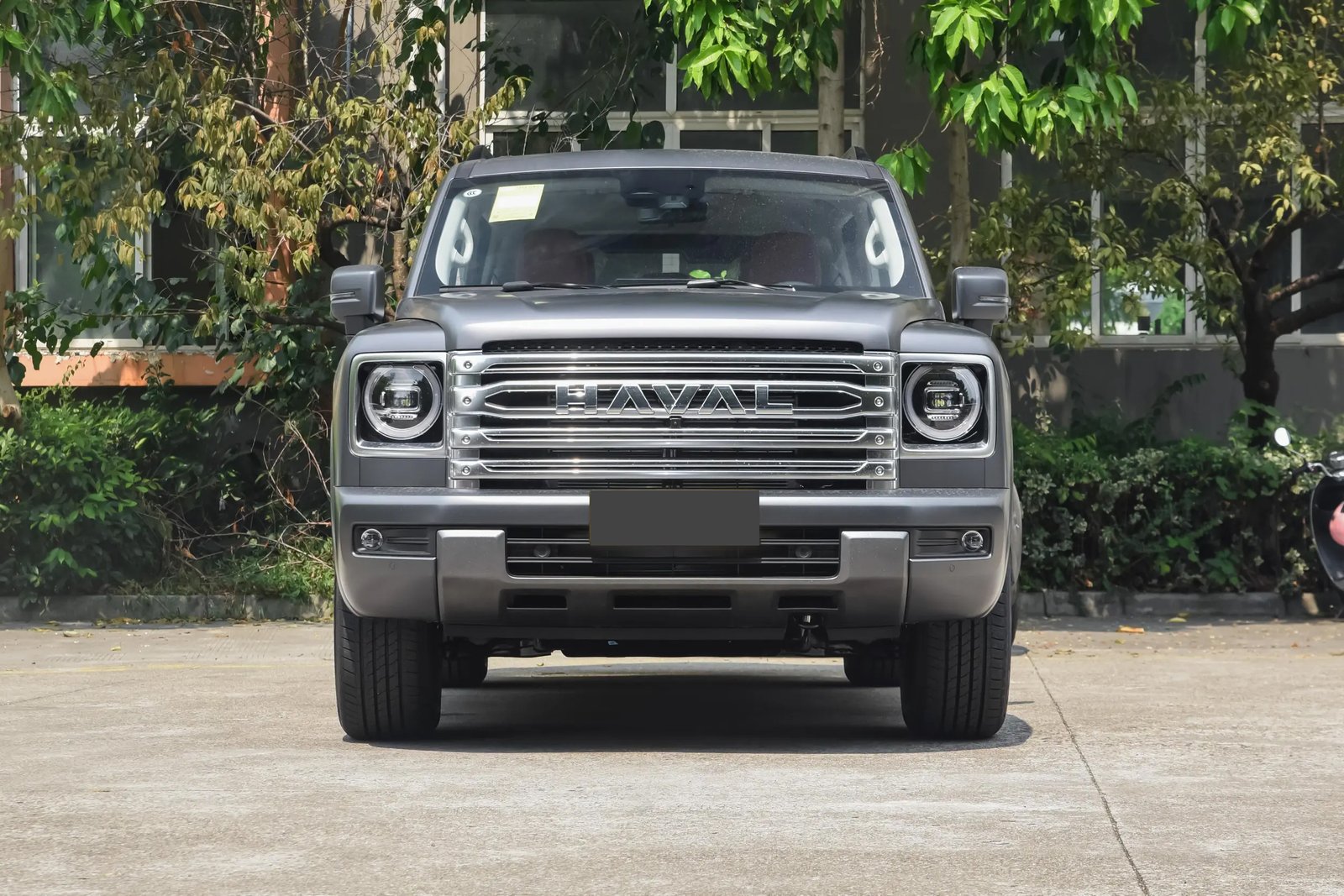

The front features a family-style design and a large air intake grille with a rugged front bumper that shows off its off-road character .
The off-road performance of the H9 is excellent, equipped with all-wheel-drive system and differential lock and other equipment, so that it can maintain a stable driving state in complex road conditions.
The Haval H9 has excellent power performance and is equipped with a powerful engine that provides plenty of driving power. In the off-road driving process, can easily cope with a variety of road conditions. Whether it's mountain roads, muddy dirt roads or sandy roads, the Haval H9 can drive with ease.
The Haval H9 is available in petrol and diesel options, with the petrol version featuring a 2.0T turbocharged engine with a maximum power of 165kW and a maximum torque of 385N·m, while the diesel version features a 2.4T turbodiesel engine with a 9AT transmission .
Parameter configuration
| name | Haval H9 2024 2.0T gasoline four-wheel drive exploration version 5 seats | Haharvard H9 2024 2.0T gasoline four-drive Extension version 5 seats | Haharvard H9 2024 2.0T gasoline four-wheel drive Extension version 7 seats | Haval H9 2024 2.0T gasoline four-drive Extreme Edition 5 seats | Haval H9 2024 2.0T gasoline all-wheel-drive Extreme Edition 7 seats |
| Basic information | |||||
| manufacturer | Great Wall Motor | Great Wall Motor | Great Wall Motor | Great Wall Motor | Great Wall Motor |
| rank | Medium and large SUV | Medium and large SUV | Medium and large SUV | Medium and large SUV | Medium and large SUV |
| Energy type | gasoline | gasoline | gasoline | gasoline | gasoline |
| Time to market | 2024.09 | 2024.09 | 2024.09 | 2024.09 | 2024.09 |
| engine | 2.0T 224 horsepower L4 | 2.0T 224 horsepower L4 | 2.0T 224 horsepower L4 | 2.0T 224 horsepower L4 | 2.0T 224 horsepower L4 |
| Maximum power (kW) | 165(224Ps) | 165(224Ps) | 165(224Ps) | 165(224Ps) | 165(224Ps) |
| Maximum torque (N·m) | 385 | 385 | 385 | 385 | 385 |
| gearbox | 8 Block hands in one | 8 Block hands in one | 8 Block hands in one | 8 Block hands in one | 8 Block hands in one |
| Length x Width x Height (mm) | 5070x1976x1930 | 5070x1976x1930 | 5070x1976x1930 | 5070x1960x1930 | 5070x1960x1930 |
| Body structure | 5 door 5 seat SUV | 5 door 5 seat SUV | 5-door, 7-seater SUV | 5 door 5 seat SUV | 5-door, 7-seater SUV |
| Maximum speed (km/h) | 180 | 180 | 180 | 180 | 180 |
| Official 100 km Acceleration time (s) | - | - | - | - | - |
| WLTC Combined Fuel consumption (L/100km) | 10.7 | 10.7 | 10.7 | 10.7 | 10.7 |
| Vehicle warranty period | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers | Five years or 150,000 kilometers |
| First owner warranty period | Engine, transmission core parts lifetime warranty | Engine, transmission core parts lifetime warranty | Engine, transmission core parts lifetime warranty | Engine, transmission core parts lifetime warranty | Engine, transmission core parts lifetime warranty |
| body | |||||
| Length (mm) | 5070 | 5070 | 5070 | 5070 | 5070 |
| Width (mm) | 1976 | 1976 | 1976 | 1960 | 1960 |
| Height (mm) | 1930 | 1930 | 1930 | 1930 | 1930 |
| Wheelbase (mm) | 2850 | 2850 | 2850 | 2850 | 2850 |
| Front wheel base (mm) | 1635 | 1635 | 1635 | 1635 | 1635 |
| Rear wheel base (mm) | 1635 | 1635 | 1635 | 1635 | 1635 |
| Minimum ground clearance (mm) | - | - | - | - | - |
| Body structure | SUV | SUV | SUV | SUV | SUV |
| Number of doors (each) | 5 | 5 | 5 | 5 | 5 |
| Door opening mode | Swing door | Swing door | Swing door | Swing door | Swing door |
| Number of seats (PCS) | 5 | 5 | 7 | 5 | 7 |
| Service weight (kg) | 2250 | 2330 | 2330 | 2365 | 2365 |
| Full load weight (kg) | 2890 | 2890 | 2890 | 2890 | 2890 |
| Tank capacity (L) | 80 | 80 | 80 | 80 | 80 |
| Luggage compartment Capacity (L) | - | - | - | - | - |
| Minimum turning radius | - | - | - | - | - |
| Approach Angle (°) | 31 | 31 | 31 | 31 | 31 |
| Departure Angle (°) | 26 | 26 | 26 | 26 | 26 |
| Maximum gradient (%) | - | - | - | - | - |
| engine | |||||
| Engine type | GW4C20B | GW4C20B | GW4C20B | GW4C20B | GW4C20B |
| Volume (mL) | 1967 | 1967 | 1967 | 1967 | 1967 |
| Displacement (L) | 2 | 2 | 2 | 2 | 2 |
| Intake form | turbocharging | turbocharging | turbocharging | turbocharging | turbocharging |
| Engine layout pattern | Place sth. vertically | Place sth. vertically | Place sth. vertically | Place sth. vertically | Place sth. vertically |
| Cylinder arrangement | L | L | L | L | L |
| Number of cylinders (PCS) | 4 | 4 | 4 | 4 | 4 |
| Valve per cylinder (number) | 4 | 4 | 4 | 4 | 4 |
| Compression ratio | - | - | - | - | - |
| Valve mechanism | DOHC | DOHC | DOHC | DOHC | DOHC |
| Maximum horsepower (Ps) | 224 | 224 | 224 | 224 | 224 |
| Maximum power (kW) | 165 | 165 | 165 | 165 | 165 |
| Maximum power speed (rpm) | 5500 | 5500 | 5500 | 5500 | 5500 |
| Maximum torque (N·m) | 385 | 385 | 385 | 385 | 385 |
| Maximum torque speed (rpm) | 1800-3600. | 1800-3600. | 1800-3600. | 1800-3600. | 1800-3600. |
| Engine specific technology | - | - | - | - | - |
| Fuel form | gasoline | gasoline | gasoline | gasoline | gasoline |
| Fuel oil label | 92 # | 92 # | 92 # | 92 # | 92 # |
| Oil supply mode | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder | Direct injection in cylinder |
| Cylinder head material | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy | Aluminium alloy |
| Cylinder block material | Cast iron | Cast iron | Cast iron | Cast iron | Cast iron |
| Environmental protection standard | Country VI b | Country VI b | Country VI b | Country VI b | Country VI b |
| gearbox | |||||
| Transmission description | 8 Block hands in one | 8 Block hands in one | 8 Block hands in one | 8 Block hands in one | 8 Block hands in one |
| Shift number | 8 | 8 | 8 | 8 | 8 |
| Transmission type | Manual Transmission (AT) | Manual Transmission (AT) | Manual Transmission (AT) | Manual Transmission (AT) | Manual Transmission (AT) |
| Chassis/steering | |||||
| Driving mode | front-wheel-drive | front-wheel-drive | front-wheel-drive | front-wheel-drive | front-wheel-drive |
| Four-wheel drive type | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive | Timely four-wheel drive |
| Central differential structure | Multi-disc clutch type central differential | Multi-disc clutch type central differential | Multi-disc clutch type central differential | Multi-disc clutch type central differential | Multi-disc clutch type central differential |
| Front suspension form | Double fork arm independent suspension | Double fork arm independent suspension | Double fork arm independent suspension | Double fork arm independent suspension | Double fork arm independent suspension |
| Rear suspension form | Integral bridge type non-independent suspension | Integral bridge type non-independent suspension | Integral bridge type non-independent suspension | Integral bridge type non-independent suspension | Integral bridge type non-independent suspension |
| Steering type | Electric power assist | Electric power assist | Electric power assist | Electric power assist | Electric power assist |
| Car body structure | Non-bearing type | Non-bearing type | Non-bearing type | Non-bearing type | Non-bearing type |
| Wheel/Brake | |||||
| Front brake type | Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type |
| Rear brake type | Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type | Ventilated disk type |
| Parking brake type | Electronic parking | Electronic parking | Electronic parking | Electronic parking | Electronic parking |
| Front tire specifications | 265/65 R17 | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
| Rear tire specifications | 265/65 R17 | 265/60 R18 | 265/60 R18 | 265/55 R19 | 265/55 R19 |
| Spare gauge | ● Full size | ● Full size | ● Full size | ● Full size | ● Full size |
| Spare tire placement method | ○ Bottom hanging type 2000 yuan | ○ Bottom hanging type 2000 yuan | ○ Bottom hanging type 2000 yuan | ○ Bottom hanging type 2000 yuan | ○ Bottom hanging type 2000 yuan |
| ● Knapsack | ● Knapsack | ● Knapsack | ● Knapsack | ● Knapsack | |
| Active safety | |||||
| ABS anti-lock | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Braking force distribution (EBD/CBC, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Brake assist (EBA/BA, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Traction control (TCS/ASR, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Body stability system (ESP/DSC, etc.) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Active safety early warning system | - | ● Lane departure warning | ● Lane departure warning | ● Lane departure warning | ● Lane departure warning |
| - | ● Front collision warning | ● Front collision warning | ● Front collision warning | ● Front collision warning | |
| - | ● Rear collision warning | ● Rear collision warning | ● Rear collision warning | ● Rear collision warning | |
| - | ● Reverse side warning | ● Reverse side warning | ● Reverse side warning | ● Reverse side warning | |
| - | ●DOW open door warning | ●DOW open door warning | ●DOW open door warning | ●DOW open door warning | |
| - | ● Traffic crossing warning ahead | ● Traffic crossing warning ahead | ● Traffic crossing warning ahead | ● Traffic crossing warning ahead | |
| - | ● Traffic crossing brake ahead | ● Traffic crossing brake ahead | ● Traffic crossing brake ahead | ● Traffic crossing brake ahead | |
| Active brake | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Parallel auxiliary | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Lane keeping assist system | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Keep lane centered | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Fatigue driving tips | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Active DMS fatigue detection | - | - | - | - | - |
| In-car vital signs detection | - | - | - | - | - |
| Road traffic sign recognition | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Signal light recognition | - | - | - | - | - |
| Night vision system | - | - | - | - | - |
| Passive safety | |||||
| Front airbag | ● Main driver seat | ● Main driver seat | ● Main driver seat | ● Main driver seat | ● Main driver seat |
| ● Passenger seat | ● Passenger seat | ● Passenger seat | ● Passenger seat | ● Passenger seat | |
| Side airbag | ● Front Row | ● Front Row | ● Front Row | ● Front Row | ● Front Row |
| Side safety air curtain | - | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Front knee air bag | - | - | - | - | - |
| Central airbag | - | - | - | - | - |
| Seat belt is not fastened | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Tire pressure monitoring system | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display | ● Tire pressure display |
| Child Seat Interface (ISOFIX) | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration | ● Standard Configuration |
| Passive pedestrian protection | - | - | - | - | - |
| Safety tyre | - | - | - | - | - |
